◆ 传动平稳性：
通过带齿与轮齿的啮合传递动力，有效消除滑动现象，减少振动和噪音，运行更平稳。
◆ 高承载能力：
人字齿设计可均匀分布负载，适用于大扭矩和高功率传输场景，承载能力优于传统同步带。
◆ 传动效率高：
啮合传动减少能量损耗，传动效率可达95%以上，节能效果显著。
◆ 结构紧凑：
相比传统齿轮系统，人字齿带轮体积更小，适合空间受限的安装环境。
◆ 维护简便：
无需复杂润滑系统，安装和更换成本较低，维护周期长。
◆ 抗错位能力强：
对称齿形设计可补偿轻微安装误差，延长使用寿命。

产品数据

标准人字齿皮带轮

类 型 “ 红 色 ” R , 节 距 1 4 mm , 宽 W = 1 0 7 mm

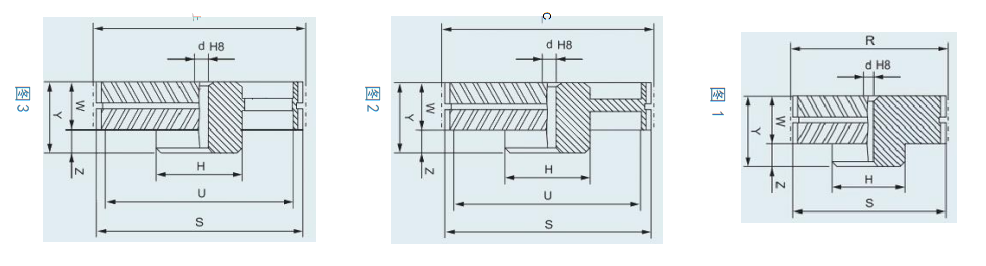

代码齿数图RSUHdWYZ最大孔材料
R-28S-MPB281124,78121,99一109,025,4107,0133,026,073,0Acciaio
R-30S-MPB301133,69130,90一117,525,4107,0133,026,078,0
R-32S-MPB321142,61139,81一126,525,4107,0133,026,084,0
R-34S-MPB341151,52148,73一135,525,4107,0133,026,090,0
R-36S-MPB361160,43157,64-144,025,4107,0133,026,096,0
R-38S-MPB381169,35166,55-153,025,4107,0133,026,0102,0
R-40S-MPB401178,26175,46-162,025,4107,0133,026,0108,0
R-43S-MPB431191,63188,83-174,025,4107,0133,026,0117,0
R-45S-MPB451200,54197,75-183,025,4107,0123,016,0122,0
R-48S-MPB481213,91211,12-197,025,4107,0123,016,0131,0
R-50S-MPB501222,82220,03-205,025,4107,0123,016,0137,0
R-56S-MPB561249,56246,77-230,025,4107,0123,016,0153,0
R-60S-MPB602267,39264,59230,0180,025,4107,0123,016,0120,0GS400
R-63S-MPB632280,76277,96243,0180,025,4107,0123,016,0120,0
R-71S-MPB712316,41313,62279,0200,025,4107,0123,016,0133,0
R-75S-MPB752334,24331,44296,0200,025,4107,0123,016,0133,0
R-80S-MPB802356,52353,72319,0200,025,4107,0123,016,0133,0
R-90S-MPB902401,08398,29358,0220,025,4107,0123,016,0147,0GG
R-112S-MPB1123499,12496,33456,0220,025,4107,0123,016,0147,0GG
R-140S-MPB1403623,91621,11581,0240,025,4107,0123,016,0160,0GG
R-168S-MPB1683748,69745,89706,0240,025,4107,0123,016,0160,0GG

GS400= 球墨铸铁，GG= 灰口铸铁，所有尺寸都以mm 表示

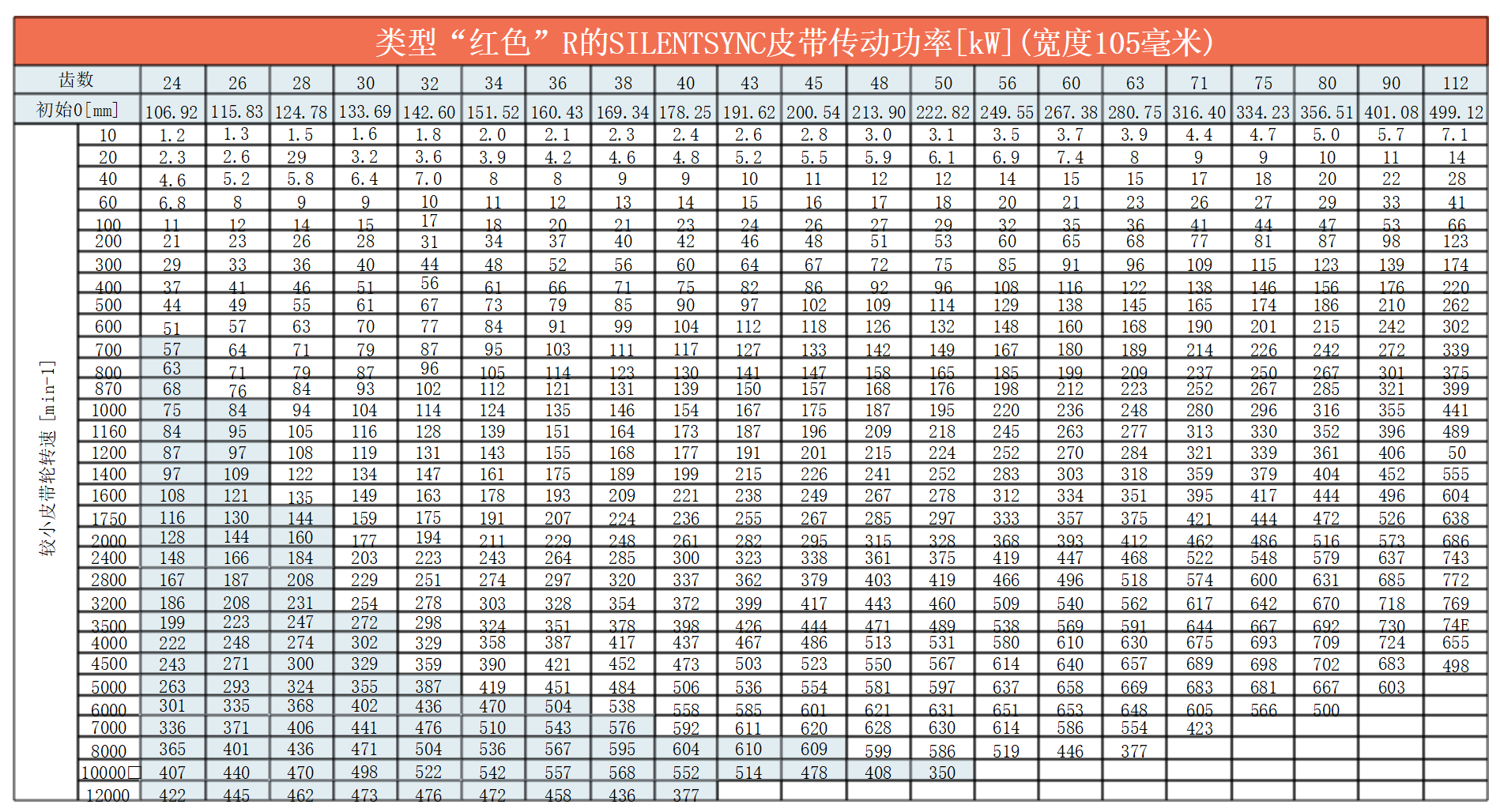

皮带传动基本功率
